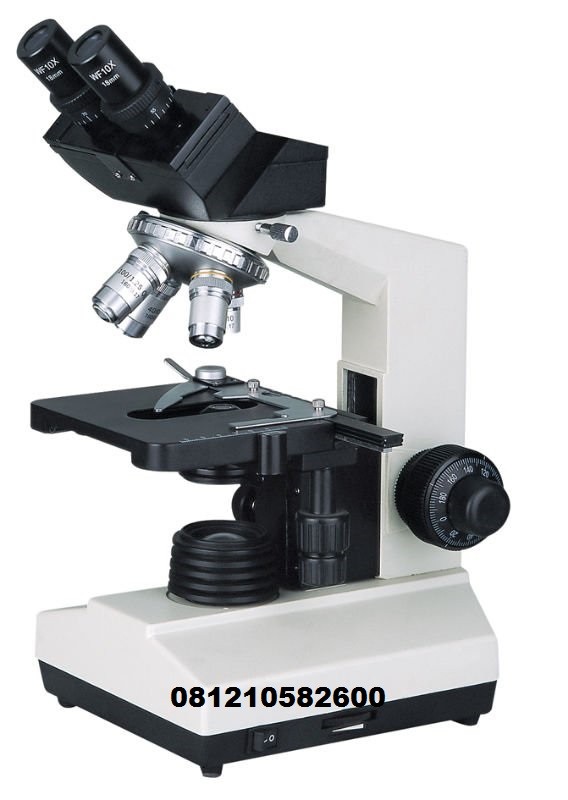

Specification :
Eyepiece : P10X,(WF10x),P16X
objective:4x,10x,40x(s) ,100x(s,oil)
wide field plane-scope eyepiece:WF10X,WF16X;
Total magnification:40x-1600x direct/ 107x-2680x from camera;
interpupillary distance:55-75mm;45°inclined,360°rotatable;
double layer mechanical stage:142mmx132mm,moving range X-Y:75×50mm;
dia2-30mm iris diaphragm and dia32 filter; Abbe condensor :N.A. 1.25 ;
Coaxial coarse and fine focusing adjustable mechanism:25mm,precision:0.002mm;
Ilumination Halogen Lamp 220V/ 6V20W.
