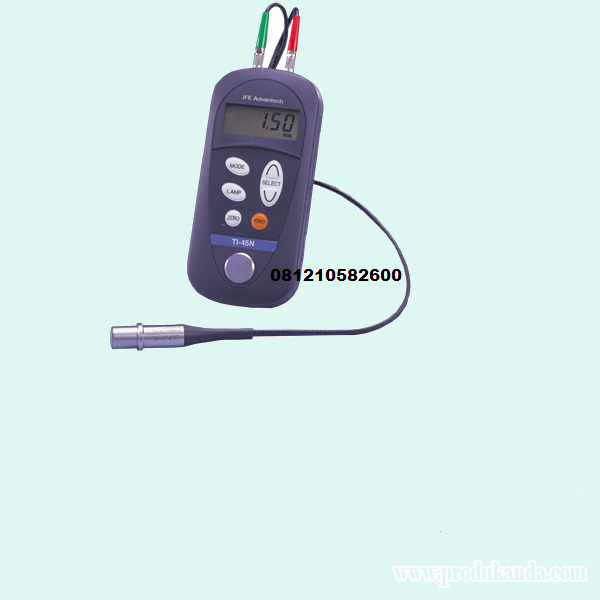

Ultrasonic Thickness Gauge JFE-TI-45 Advantech Co Series
Specifications :
Product inspection Ferrous metals Steel plates, pressed products, automobile parts and cast metals Nonferrous metals Processed copper products, copper alloy and aluminum parts Plastics Gas pipe, water pipe, plastic containers and various other molded parts Other Glass products, lenses and ceramics Applications : Maintenance tasks - Checking corrosion of pipes, water tanks and bridges - Checking wear of construction machinery and ship hulls - Verifying the accuracy of metal molds and precision components Specifications : Type JFE-TI-45N JFE-TI-45B JFE-TI-45C Measuring range 1.00 to 199.99mm 0.40 to 15.00mm 0.50 to 19.00mm Pipe Diameter ( mm) ø 30.00 or more ø 10.50 or more ø 8.00 or more Thickness ( mm) 1.50 or more 1.25 or more 0.80 or more Tolerance resolution ± 0.05mm or ± 0.2% rdg ± 0.03mm ± 0.03mm Display 4.5-Digit LCD display with pushbutton and backlighting Display resolution 0.01 mm Velocity range 1, 000 to 12, 000m/ s Cable 1m long cable with locking, quick removable connections Battery One " AA" Battery Calibration Plate 5.00mm steel plate integrated into front of housing Size 69( W) x 144( H) x 30( T) mm Weight Gauge: 150g , Probe: 50g Temperature -5 to 50° C( Ambient, Material)

Hubungi : Impol / Lince
sales_tokogsi@hotmail.com       Hp. 081210582600, 081210434500
